19/08/2012 - Static ports and lines

I am using a safeair kit and ports.  The T joint taking the line to the forward fuselage is set high so that moisture can not get into the line and pool causing headaches during flight.

The ports are glued in using tank sealant and judicious use of pressure from clamps.  They seem pretty secure.

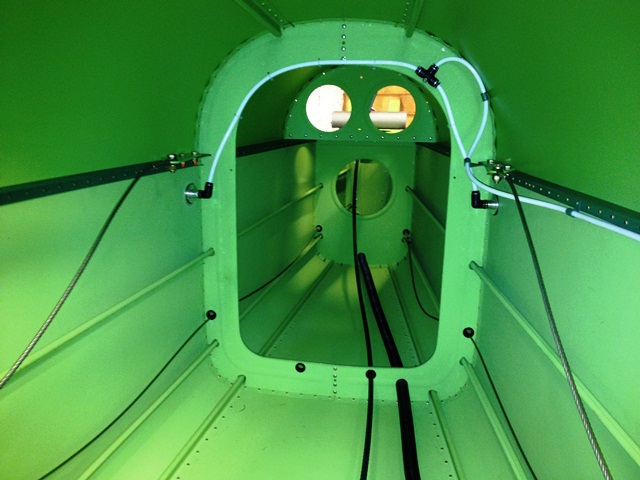

In the picture can also see the conduit line installed to take any wiring required.  Not sure I will need it now but if later i want o fit something the conduit is in place to take the lines.
